Home » Products » Embedded Aluminum LED Motorway Stud Lights for Road C1

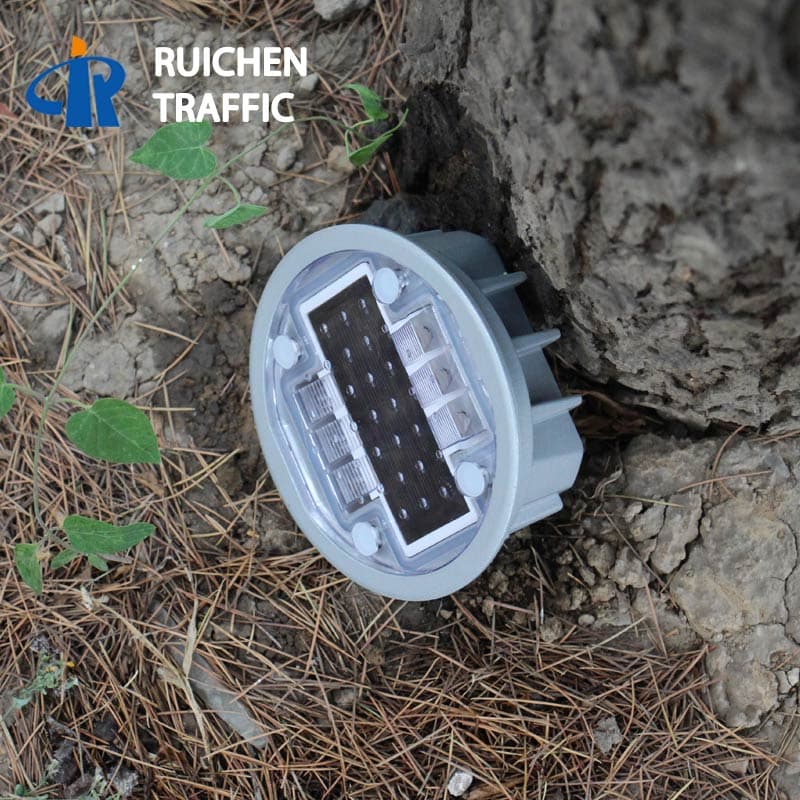

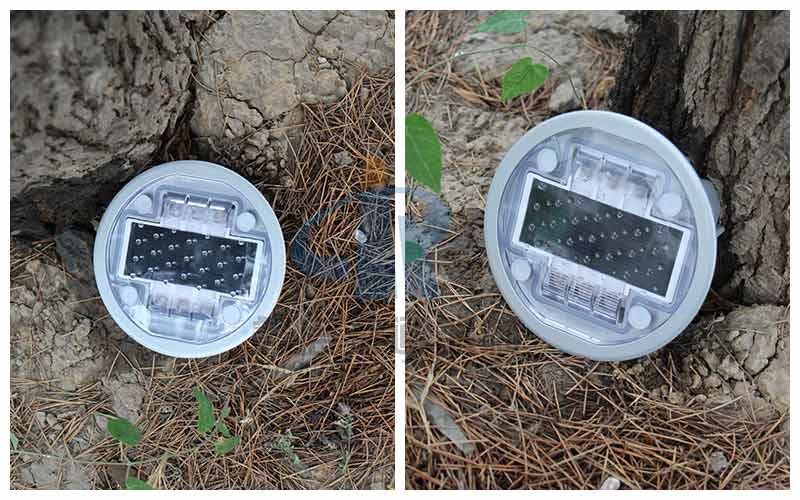

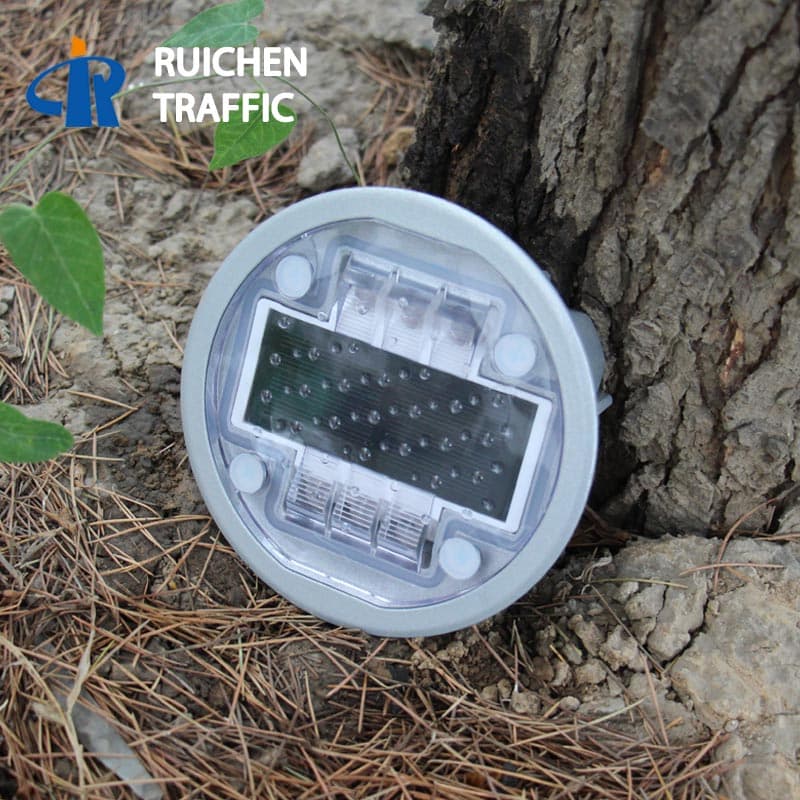

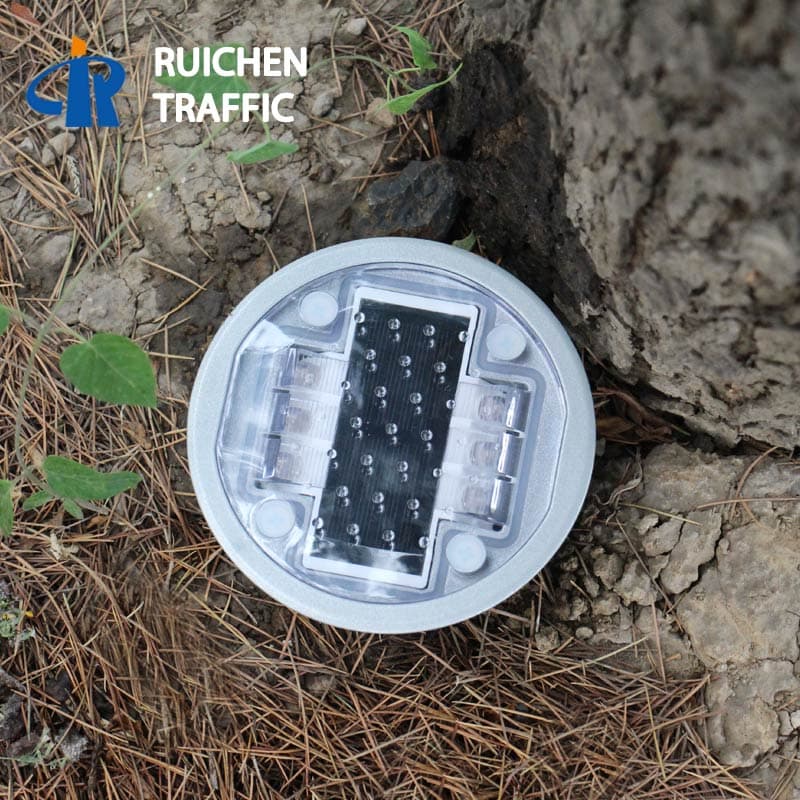

Embedded Aluminum LED Motorway Stud Lights for Road C1
Load Bearing: >20T(static)
Warranty: 18 Months
Body material: Heavy-duty casting aluminum
Power supply: The solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
PRODUCTS LIST
HOT products
Inquiry
Description
Inquiry
Description:
Aluminum Motorway Stud Lights Features:
•Up to 800 meters of visibility.
•Reliable all night, all-year-round performance.
•Totally sustainable harnessing free solar energy.
•Used where street lighting is either unavailable, Motorway Stud Lights not cost-effective or environmentally impossible.
•Cost-effective, LED Motorway Stud Lights are easy to install and require absolutely no wires or maintenance.
•Solar-powered Motorway Stud Lights self-contained surface mounted.
•Motorway Stud Lights for road accept OEM/ODM
LED Motorway Stud Lights for road Parameters:
| Material: | Heavy-duty casting aluminum |
| Power supply: | The solar panel(monocrystalline 2.5V/0.2W) |
| Battery: | NI-MH 1.2V/800MAH or lithium battery |
| Working model: | Blinking or Constant Charging at daytime and working automatically at night |
| LED: | 3pcs per side, total 6 pcs |

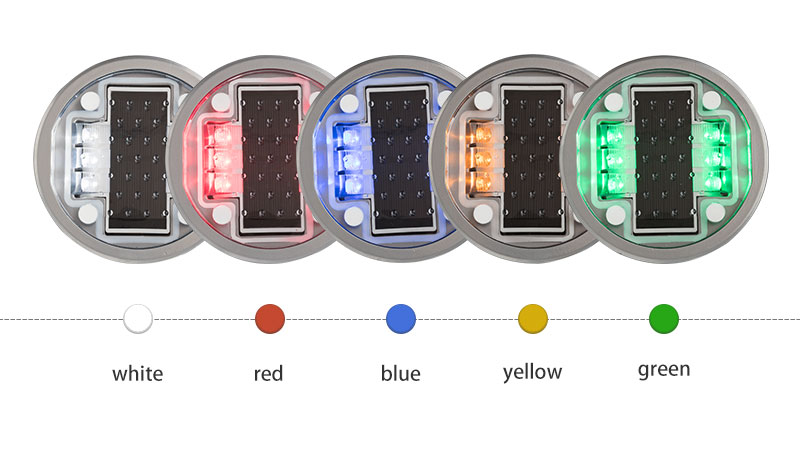

| LED colors: | Yellow, White, Red, Green, Blue |
| Life span: | 3 years |
| Resistance: | >20T(static) |
| Size: | 120*50mm(bottom) 4.72″*1.97″(bottom) 135*50mm(upper) 5.31″*1.97″(upper) |
| Visual distance: | >800M |
| Water poof: | IP68 |
| Carton Size: | 24pcs/ctn; weight: 17kgs; Carton size: 43*25*28CM/57*41*23.5CM 24pcs/ctn; weight: 37.48bs; Carton size: 16.92″*9.84″*11.02″/22.44*16.14″*9.25″ |
Application of Aluminum LED Motorway Stud Lights C1:
♥Schools and hospitals
♥Highways
♥High traffic areas
♥Walking paths
♥Transit stations
♥Parks and campuses
♥Urban Road
Installation Method Of Embedded Aluminum Motorway Stud Lights C1:
1. Carefully mark the distance between the placement of Motorway Stud Lights. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill Φ120mm and depth will be 50mm.
2. Remove all debris from the installation hole.
3. Pour epoxy into the holes per the manufacturer’s instruction.
4. Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the led Motorway Stud Lights shaft.
5. Set the lighting surface of the Motorway Stud Lights to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and Motorway Stud Lights shaft.
6. After curing the LED Motorway Stud Lights for 6-8 hours, remove the installation of the isolation facility.
