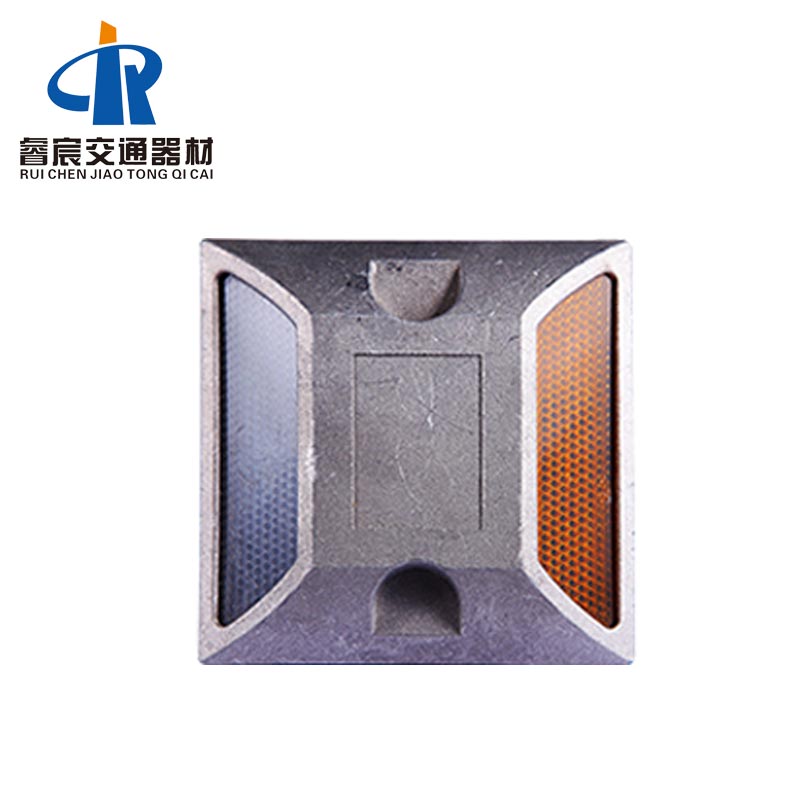

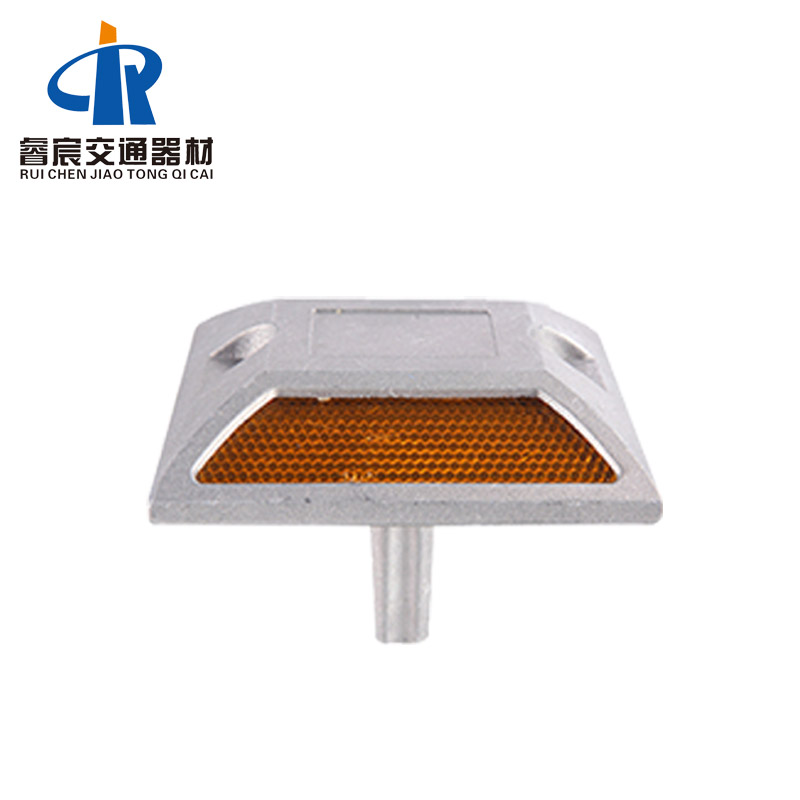

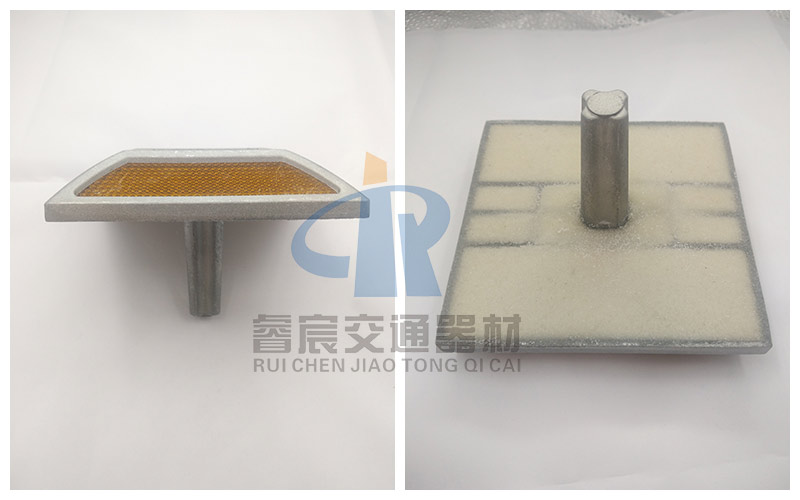

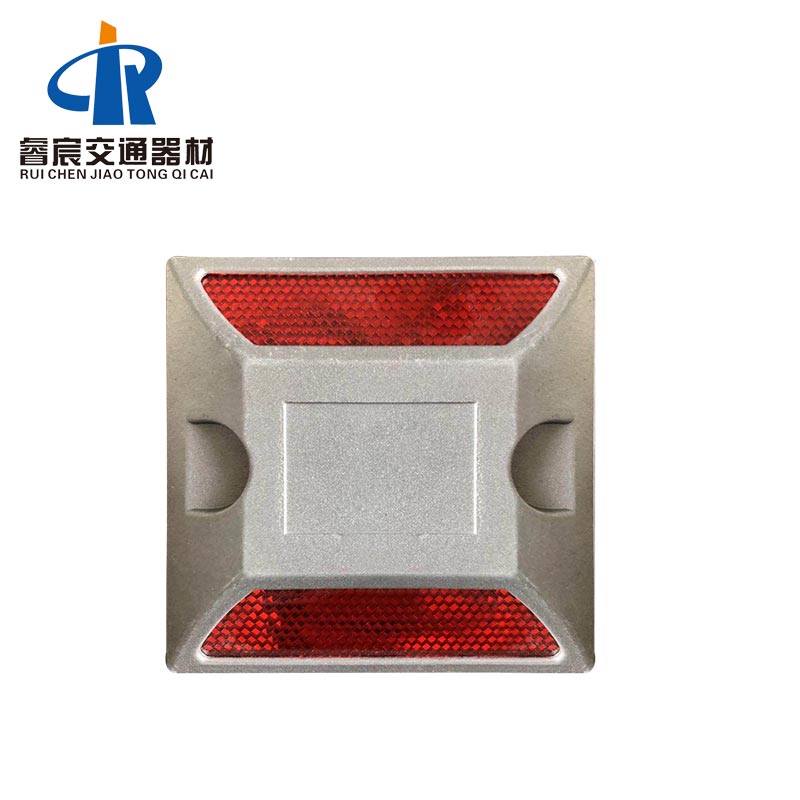

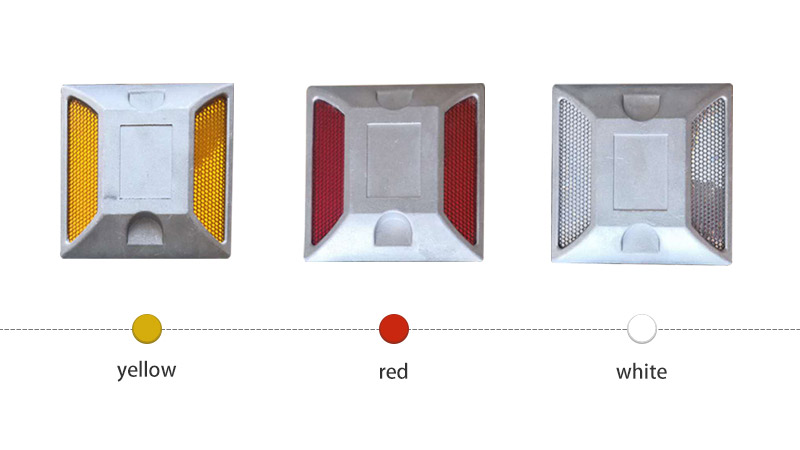

Aluminum Reflective Motorway Stud Lights Marker 102
Body Material: ABS
Size: 102*102*22mm+50mm (4.02″*4.02″*0.87″+1.97″)
Filling: Epoxy+Quartz sand
Lens Material: PMMA
PRODUCTS LIST
HOT products
Inquiry
Description
Inquiry
Description:
Reflective Motorway Stud Lights Marker Features:
•Reflective Motorway Stud Lights water, oil, chemical, and heat resistance.
•Aluminium reflective Motorway Stud Lights marker can work more than 3 years normally.
•Very high reflectivity.
•Reflective Motorway Stud Lights easy installation with glues.
•Photometric values:exceeds 600(mcd/lux).
Reflective Motorway Stud Lights Marker Parameters:
| Body material: | ABS |
| Filling: | Epoxy+Quartz Sand |
| Lens Material: | PMMA |
| Reflector type: | Double side/Single side |
| Quality: | ASTM D4280 & EN1463-1 standard |
| Size: | 102*102*22mm+50mm (4.02″*4.02″*0.87″+1.97″) |
| Packing: | 38*36*22.5cm, 50pcs/ctn (14.96″*14.17″*8.86″, 50pcs/ctn) |
| Weight: | 320g/pc; 19kg/ctn (0.71bs/pc; 41.89bs/ctn) |
Installation Method Of Reflective Motorway Stud Lights Marker:
1. Determine the installation location and distance, clean the road surface, and ensure that the Motorway Stud Lights are installed on a flat road surface.
2. Clean the bottom of the Motorway Stud Lights and apply the epoxy glue evenly to the back of the studs.
3. Press the side with the glue on the road, fix the position, wait for the glue to dry.
4. Check within 2 hours of installation to ensure that all Motorway Stud Lights are not installed incorrectly and are not bent or deformed due to compression.
5. Remove the installation isolation facility within 6-8 hours after the installation of the Motorway Stud Lights.
